The following questions come from the live audience discussion during our Dust Collection Best Practices for Maintenance & Operations Webinar. These questions were submitted by attendees looking for practical guidance on maintaining, troubleshooting, and improving dust collection systems, and the answers were provided by our team of experienced dust collection engineers and technicians based on what they have seen in the field across many different applications and operating conditions.
— "How can I get the correct measurements when ordering filters for my dust collector?"
The key measurements are the bag diameter, flat width, and length. The diameter is the distance across the circle of the bag or cartridge, but because fabric bags are not always easy to measure accurately in a round shape, the simpler method is to lay the bag flat and measure straight across it. That flat width can then be used to calculate the diameter. The length is usually measured from the bottom of the bag to the top, or to the top of the snap band where it fits into the tubesheet. In some cases, additional dimensions may be needed. The most accurate option is often to send in a sample bag so it can be matched directly for snap band size, flat width, and overall fit.
— "Is the tubesheet diameter the same as the snap band diameter?"
They are related, but they are not exactly the same thing. The tubesheet diameter refers to the size of the hole in the metal plate where the bag snaps into place. The snap band on the bag has to match that hole correctly so the bag seals properly. If the bag is too small, it can leak. If it is slightly too large, it can crease or fail to seat correctly, which can also lead to leaks. This is why the tubesheet hole measurement is so important, especially for snap band bags in pulse jet baghouses. There is also an important relationship between the tubesheet hole, the bag diameter, and the cage diameter. A common setup is a 6.25-inch tubesheet hole, a 5.875-inch bag diameter, and a 5.625-inch cage diameter. These dimensions have to work together so the bag fits the cage correctly and pulses properly during cleaning.
— "What is the average life span for a filter bag vs. a cartridge or a pleated filter?"
A rough middle-of-the-road estimate is about one year, but actual life span depends heavily on the application. In severe conditions such as heavy dust loading, abrasive dust, high temperatures, temperature spikes, or 24/7 operation, filters may last only a few weeks or months. In lighter-duty applications with less demanding dust and intermittent use, filters may last several years. System sizing and maintenance also have a major impact. If a system is undersized or not maintained properly, filter life can be shortened significantly. Rather than relying on a universal number, it is better to look at the application, dust characteristics, operating conditions, and system design to estimate realistic filter life.
— "How can I identify damaged bags?"

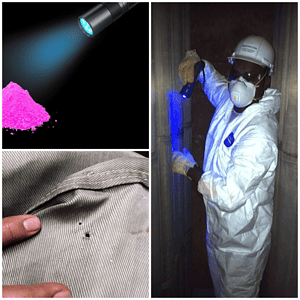

One of the best ways to identify damaged bags is with a dye leak test using UV powder. The powder is introduced upstream of the baghouse so it coats the filters. After the system runs for a few minutes, it is shut down and the clean air plenum is inspected with a UV or black light. The powder will show where it has passed through a leaking filter or around the interface between the bag and the tubesheet. This makes it much easier than trying to follow visible dust patterns, which can be misleading. In some cases, it also helps to inspect from the dirty side because certain leaks are easier to see there. Proper coverage matters, so the amount of powder used and where it is injected are important. A common guideline is about one pound per thousand square feet of filter area, and the ductwork upstream of the baghouse is usually the best injection point for even distribution.
— "How do I monitor for dust emissions?"
The best method discussed was triboelectric emissions monitoring, which is also often used as a leak detection system. These monitors are sensitive enough to detect very small increases in dust emissions and can warn operators when a leak is starting to form long before dust becomes visibly noticeable at the stack. On larger systems, they can even help narrow the problem down to a specific compartment or row of bags by showing spikes when certain rows pulse. This makes them useful not only for emissions monitoring but also for maintenance and troubleshooting. Dye testing is still an excellent maintenance tool for locating leaks during inspections, but for continuous monitoring and early warning, triboelectric leak detectors are the preferred solution.
— "Why do we have to be careful when spot-changing filter bags?"
Spot changing should be treated as an exception, not a routine practice. When one new filter is installed in a system full of older filters, the new filter is much cleaner and will often take more airflow than the others. That can cause it to load up and wear out faster, which leads to another replacement, then another, creating a cycle of repeated failures. This is why spot changing is often compared to using a spare tire: it is necessary sometimes, but it is not meant to be a long-term operating strategy. The dust cake on the older filters actually helps them function properly, so introducing too many clean filters into the system can upset the balance of airflow and accelerate problems.
— "How do we know when filters reach the end of their life?"
The main indicator is differential pressure. Over time, the differential pressure rises and falls as the cleaning system pulses, but the overall trend gradually moves upward as the filters load with dust. Eventually, the cleaning system can no longer return the pressure to the desired lower set point because the filters are becoming blinded with particles that are no longer being released during pulsing. When the differential pressure stays high and the cleaning system struggles to bring it back down, that is a sign the filters are at the end of their useful life. The exact pressure range depends on the system and application, but trending the differential pressure is the most basic and important way to determine when filters need to be changed. Accurate readings are essential, so the differential pressure tubing and gauges also need to be maintained properly.
— "What is the proper compressed air pressure for cleaning systems?"
A general recommendation for compressed air pressure is around 90 to 100 PSI, although some cartridge collector manufacturers may use slightly lower pressures, so it is always best to check the OEM guidance. The on-time depends on the pulse valve and blow pipe size and is usually pre-programmed based on the equipment design. That setting should generally not be changed, because making the valve stay open longer does not create a stronger cleaning pulse. In fact, it can weaken the pulse by reducing the sharp burst of air needed to snap the dust off the filter. The off-time depends more on application and loading. In systems without clean-on-demand, the timer setting may need adjustment based on how the differential pressure responds. In systems with clean-on-demand, the off-time mainly just needs to be long enough for the air header to refill between pulses, and shorter is generally better so the system can complete cleaning quickly and then stop.
— "How do I choose the best filter for my application?"
The selection process focuses on five main factors: – First is temperature, since the media must be able to withstand the operating range. – Second is the chemical makeup of the airstream, including whether the dust is acidic, alkaline, humid, or otherwise chemically reactive. – Third is the size and physical character of the dust, such as whether it is abrasive, sticky, or difficult to release. – Fourth is the required collection efficiency, especially if the application involves very fine particles, hazardous dust, or strict regulations. – Fifth is cost, meaning the goal is to find the most economical filter that still meets the needs of the application. In some cases, multiple media may work and the decision becomes a cost-benefit analysis. Add-ons like coatings or treatments may also be used to improve dust release or resist moisture and oils.
— "Can I have an NFPA-rated dust collector?"
There is not really a universal answer in the sense of a single “NFPA rated” dust collector that automatically applies everywhere. NFPA provides the benchmark standards, but the final authority is your local regulator, such as the fire marshal, OSHA inspector, or other authority having jurisdiction. For combustible dust applications, the standard protection package often includes explosion venting on the baghouse, an isolation device on the dirty air inlet, isolation on the clean air side if air is returned indoors, and an explosion-rated discharge device such as a rotary airlock or explosion-proof drum kit. There may also be other requirements, such as duct construction details. In some situations, different configurations may make more sense, such as indoor collectors using chemical isolation or flameless venting. The right setup depends on the dust, the process, the collector location, and local requirements. That is why the collector can be quoted to meet NFPA guidelines, but the end user still needs to confirm what their local authority requires.
— "What are the best practices for dust collection maintenance?"
The most important best practice is to have a maintenance program in place instead of waiting until something breaks. A checklist is one of the most practical ways to do that. Even though every system is a little different, the core items are usually the same: checking differential pressure, listening to pulse valves, inspecting filters from time to time, checking fan belts and sheaves, and inspecting any screw conveyor or chain drive components. These tasks can be broken up into daily, weekly, monthly, quarterly, and yearly items depending on the system. Even a simple routine, like doing a visual inspection once a week, is better than having no process at all. One of the most critical items in any maintenance program is making sure the differential pressure reading is accurate. This is often overlooked, but it is one of the most important operating parameters on the dust collector. The tubing can plug, gauges can become fouled, and false readings can make troubleshooting much harder. In some plants, those lines may need to be checked and blown out every week, every two weeks, or at least monthly. If the differential pressure reading is wrong, it limits your ability to understand how the collector is really performing. That is why making sure the DP gauge is working correctly should be one of the first priorities, with the rest of the maintenance program building from there.
— "What are some common problems with airlocks and discharge systems?"
One of the most common problems is hopper flow trouble, which often shows up as dust bridging or hanging up in the hopper. A visible sign of this is when the outside of the hopper is all dented or banged up from people hitting it with a hammer or rubber mallet to try to knock material loose. In some cases, the issue is related to the dust itself, especially if moisture is causing the dust to stick to the hopper walls. But a very common equipment-related issue is with the rotary airlock. The airlock is supposed to provide a tight seal between the hopper and the atmosphere below while still letting dust discharge. When the rotor tips wear out, air can leak through in the wrong direction, which can interfere with discharge and cause bridging. Capacity and condition also matter. If the airlock is not sized correctly or is overloaded, it can create discharge problems. Screw conveyors can also have issues, although they tend to be a little more forgiving because the material simply falls into the screw and gets pushed out. Another problem is allowing too much material to build up in the hopper. The hopper is only meant to temporarily collect dust until it can be discharged. If dust accumulates too much, it can create a hazard, restrict proper airflow and discharge, and in extreme cases even push filters and cages upward out of the tubesheet. General best practice is to keep the discharge equipment in good condition, make sure it is operating properly, and if banging on the hopper becomes necessary, use strike plates rather than damaging the hopper itself.
— "How can we control or minimize the negative effects of moisture in our system?"
If moisture is an unavoidable part of the process, the first step is making sure the filter media is appropriate for that condition. Some media types and treatments can help reduce the impact of moisture. PTFE or Teflon-style coatings, for example, make the filter surface harder for moist dust to stick to, which helps with dust release and cleaning. That can make a big difference when moisture would otherwise cause buildup on the filters. Temperature control is also very important, especially in hot dust applications. If the dust or gas stream cools below its dew point anywhere in the system, condensation can form and create moisture problems. That means it is important to avoid cold spots in the ductwork, hopper, and baghouse. In those cases, insulation and sometimes supplemental heating may be needed to keep the system hot all the way through the collector. Startup and shutdown procedures are also a major factor, because temperature swings during those times can lead to condensation inside the system. Keeping the system hot until the dust is fully out of the baghouse helps prevent moisture from forming where it can cause sticking and buildup.
— "How do we know if we have an undersized system?"
An undersized system often still works, but it does not work properly under load. One common symptom is excessive abrasion, especially holes near the bottoms of the bags, because the air velocity inside the collector is too high. When too much air is being pushed through too small a collector, the dust and airflow can wear the bags faster than normal. Another key sign shows up in the differential pressure pattern. In a properly sized system, the cleaning system can remove incoming dust continuously while the collector stays online. In an undersized system, dust comes in faster than the cleaning system can effectively remove it, so the collector slowly becomes overloaded. The way this usually appears is that differential pressure starts off looking normal, but over time it trends higher and higher. The cleaning system keeps trying to bring it back down, but eventually it cannot lower the pressure enough before it rises again. At that point, the collector may be pulsing continuously without much improvement until the fan is shut off. Once the fan is off and the collector is cleaned offline, the dust falls away and the system seems normal again for a while. That pattern is a strong sign the collector is undersized, because the dust cannot release properly while the fan is running. This is why a system that requires frequent offline cleaning just to keep going is often too small for the application, unless there is also a problem with the cleaning system itself.
