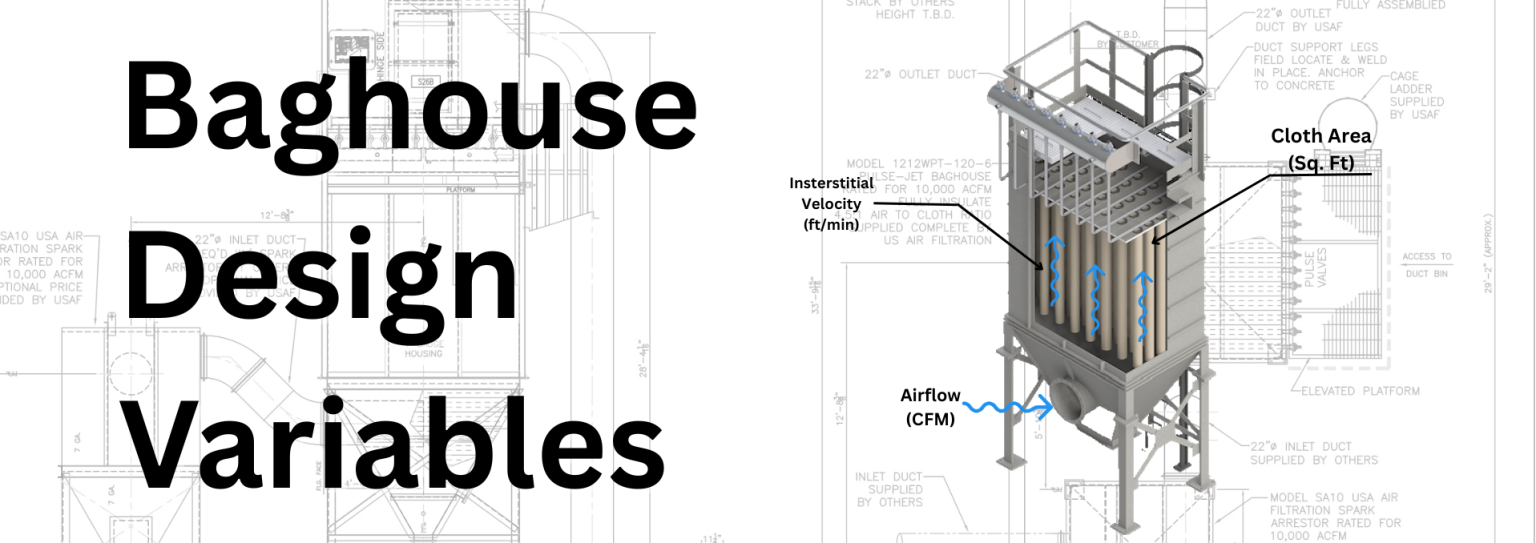

Designing and maintaining a baghouse system requires careful calculation and optimization of multiple design variables to ensure reliable performance, regulatory compliance, and long-term durability.
To assist engineers, plant managers, and maintenance teams in this process, we’ve developed a series of practical online calculators for the most important baghouse design variables. Each tool is based on proven industry practices and will help you get closer to the ideal performance targets for your application.
How Much Is My Air-to-Cloth Ratio?
The air-to-cloth ratio represents how much airflow (in cubic feet per minute, or cfm) passes through each square foot of filter media. Getting this ratio right is key to maximizing filtration performance and filter life.
What Is My Interstitial Velocity?
Interstitial velocity refers to the upward air velocity between filter bags inside the baghouse. This calculator helps you evaluate whether your design maintains proper spacing and air movement between bags.
What Is My Can Velocity?
Can velocity measures the vertical speed of air in the space beneath the filter bags (the “can” area above the hopper). Use this calculator to assess if your system geometry supports efficient airflow.
What Is My Total Filter Cloth Area?
This tool calculates the total filter media area needed based on your airflow and target air-to-cloth ratio. It helps you estimate how many filter bags you’ll need and ensures the collector is appropriately sized for your process conditions.
How Much Leak Testing Powder Do I Need?
Leak testing powders are used during inspections to detect leaks in filter bags or baghouse housing. This calculator estimates the amount of powder needed based on your collector size and the number of compartments.
How Much Precoating Powder Do I Need?
Precoating powder protects the filter media and improves initial performance. Use this calculator to determine the correct amount of precoat powder needed per square foot of media.
What Is My Duct Air Velocity?
Air velocity is the speed at which air moves through the dust collection ductwork. This calculator helps ensure you maintain safe and effective transport velocities throughout your system.
How Can I Know My Required Duct Size?
Duct sizing refers to the calculation of the appropriate diameter for your system’s ductwork based on how much air needs to be transported and at what velocity.
How Can I Know My Required Fan Power?
Fan power calculation refers to determining the appropriate brake horsepower (BHP) for your system’s motor based on how much air needs to be moved against the static pressure resistance and at what fan efficiency.
How Can I Know My Required Filter Cloth Area?
System sizing refers to the calculation of the appropriate total filter surface area for your baghouse based on how much air needs to be filtered and at what target air-to-cloth ratio.
How Can I Know My Required Static Pressure?
Static pressure calculation refers to determining the anticipated resistance for your system’s ductwork and equipment based on your current operating pressure and your new target airflow volume.
A Note of Caution
While these tools are designed to help you plan and maintain your dust collection system effectively, the results should be used as a general reference. Real-world conditions, dust characteristics, regulatory requirements, and system layout introduce additional complexities that may not be captured in a simple calculation.
We strongly recommend speaking with a dust collection expert before finalizing any design or making major equipment decisions. A professional evaluation can help you avoid costly mistakes, downtime, or safety risks down the line.
